THE M5 TEST HANDLER IS PERFECT FOR SCALABLE HIGH-MIX AND HIGH-VOLUME TESTING.

Watch the JOT M5 Test Handler in action.

Flexible product test handling from high-mix to high volume production

At JOT, we’re always working on new ways to make test handling faster and easier. That’s why we created the M5 Test Handler. The M5 is perfect for high-mix and high-volume testing. The M5 also hits the sweet spot for any line that requires flexible PCB testing capabilities – especially when device size and speed matter.

Best of all, because it’s part of the modular M-TestSystem, the M5 is truly scalable. The M5 utilizes the same M-TestBoxes as the M1 Test Handler – making it yet another smart, flexible, and cost-effective choice for your ever-changing, and growing, testing needs.

Best advantage is achieved when test application is created by embedding measurement devices inside M box, e.g. flash application. Test system is then fully independent and exchangeable between automated handling system and manual workstations.



og-image-1

Case study: See how Siemens automated their test line using the M5 Test Handler

Learn more about how Siemens utilized the M5 Test Handler to automate the testing of their SIRIUS industrial control products.

To the case study

THE JOT M5 TEST HANDLER MAKES PRODUCTION EASIER

THE SHAPE OF THINGS TO COME

Ideal for high-mix and high-volume testing purposes.

EASY, ERGONOMIC ACCESS

Faster product handling for easier line modifications.

SMARTER BY DESIGN

Industry 4.0 technology for autonomous device interconnectivity.

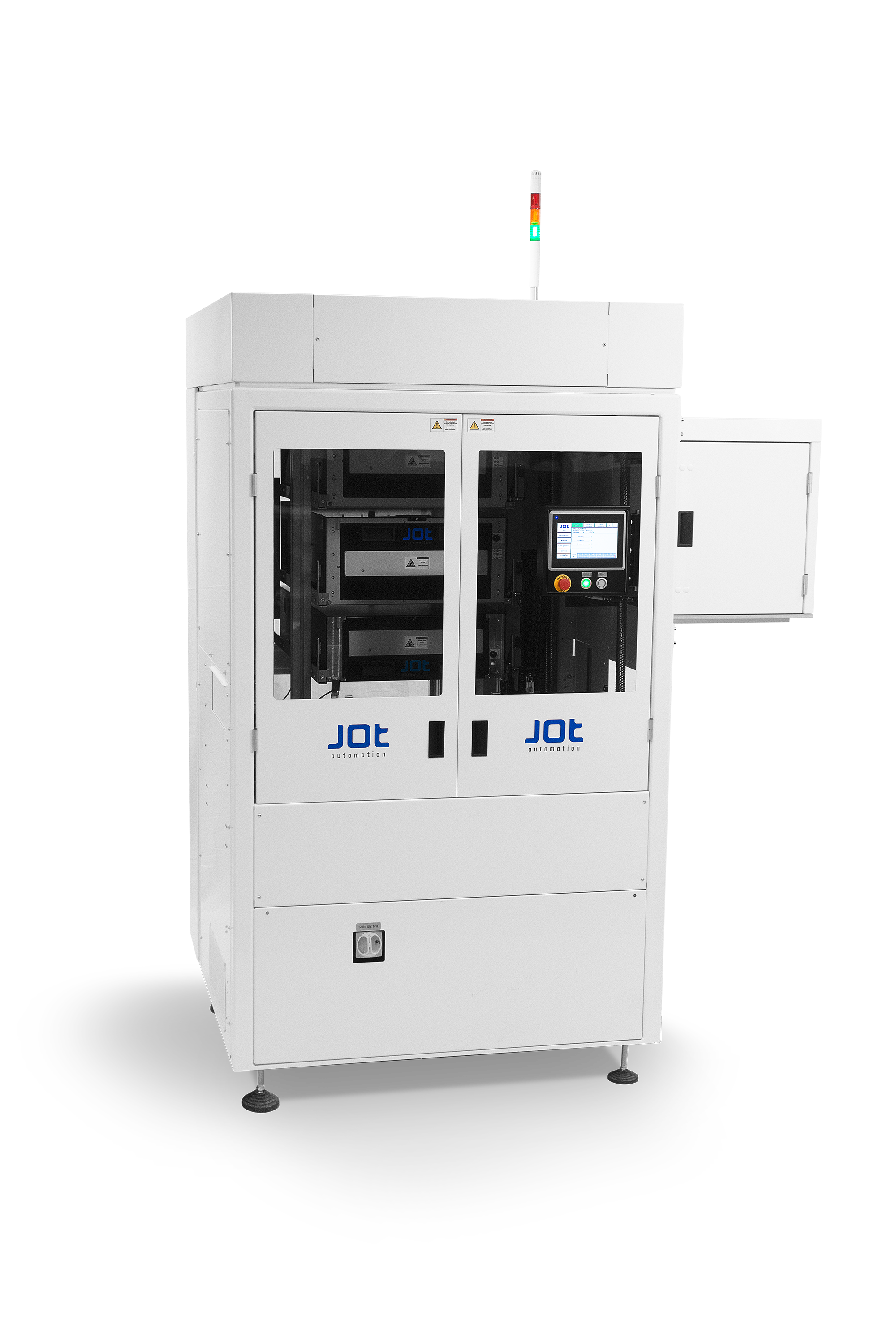

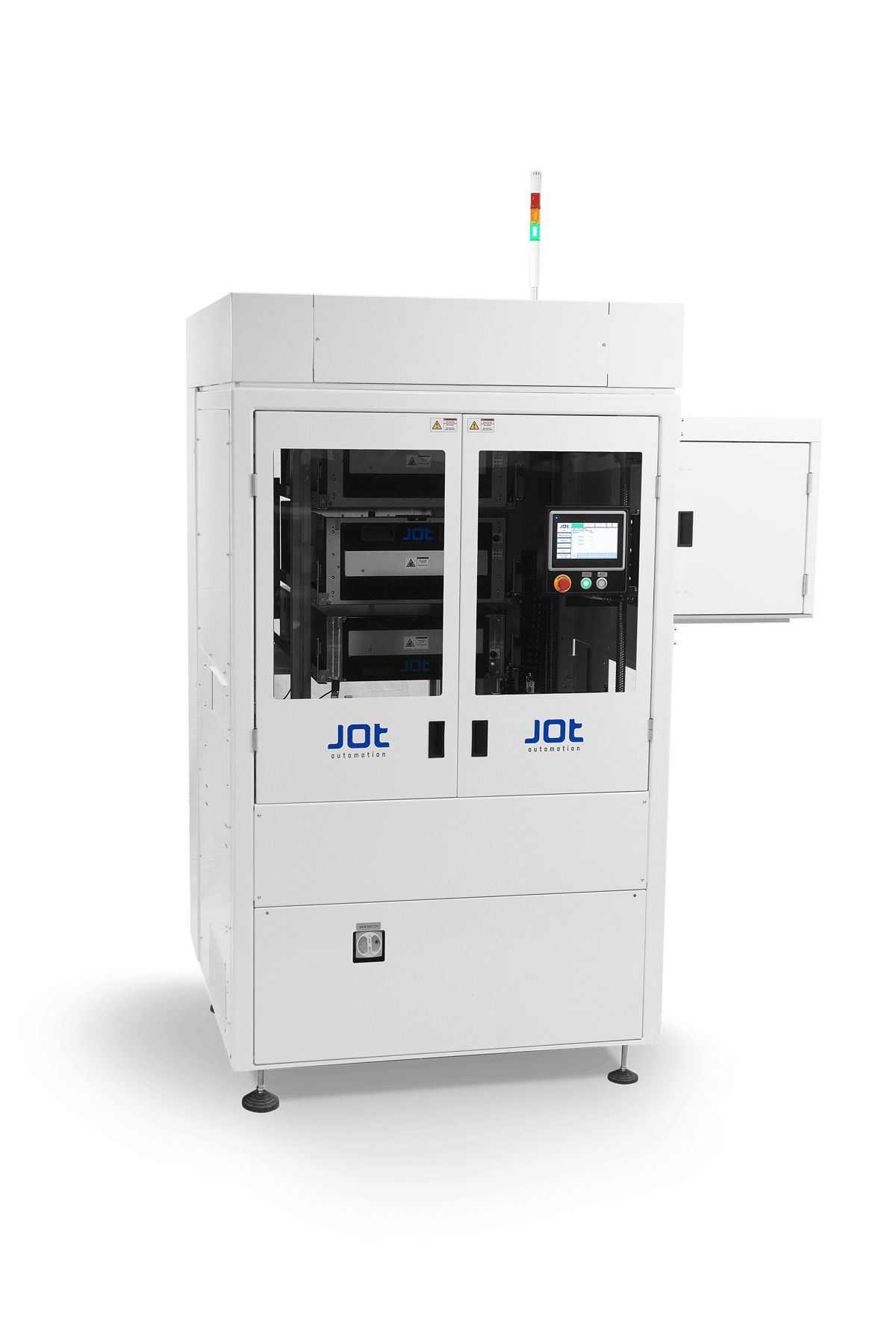

m5_tuotekuva_syvatty_03_pienennetty
jot-automation_products_m5-highlights_2

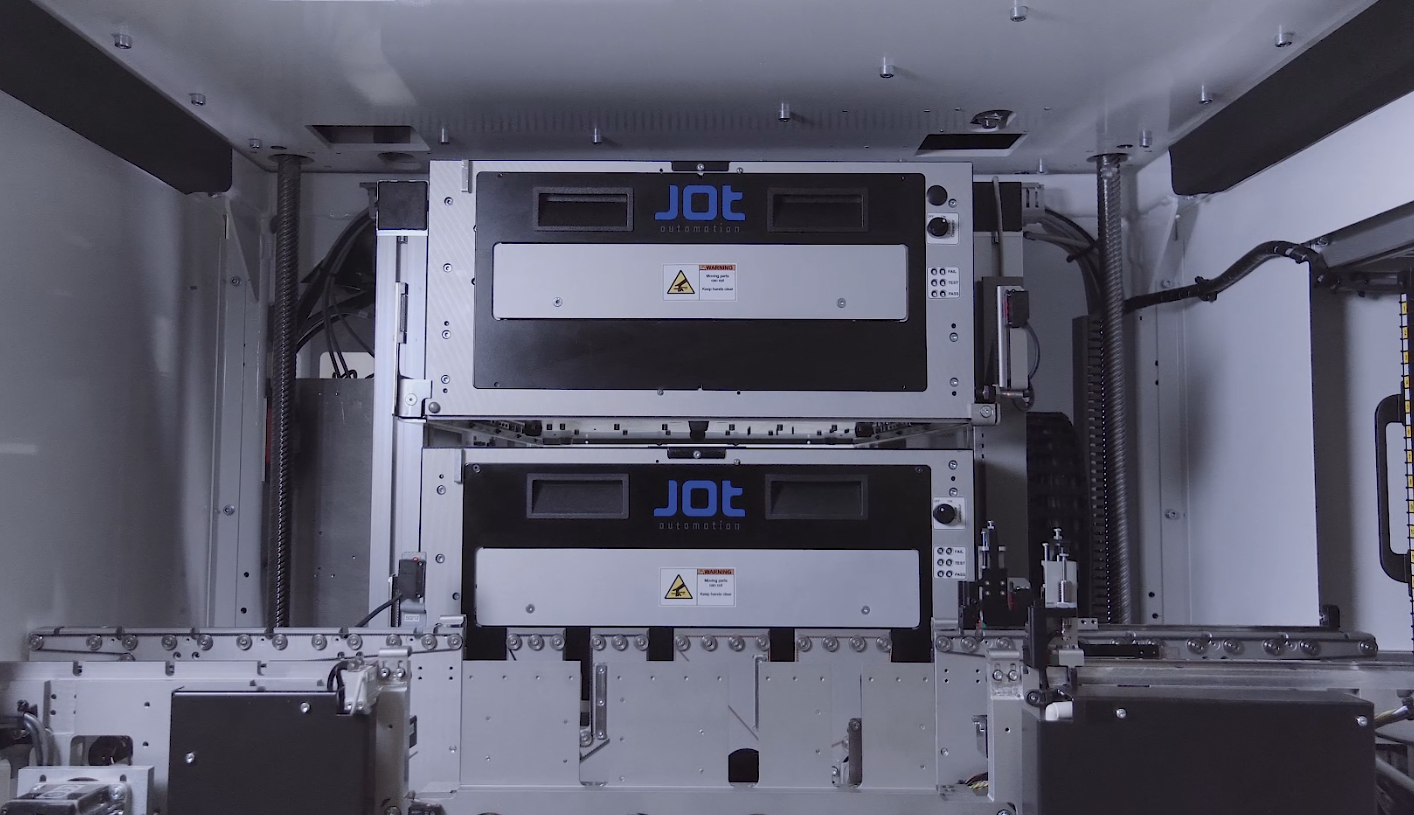

m5-highlight-3

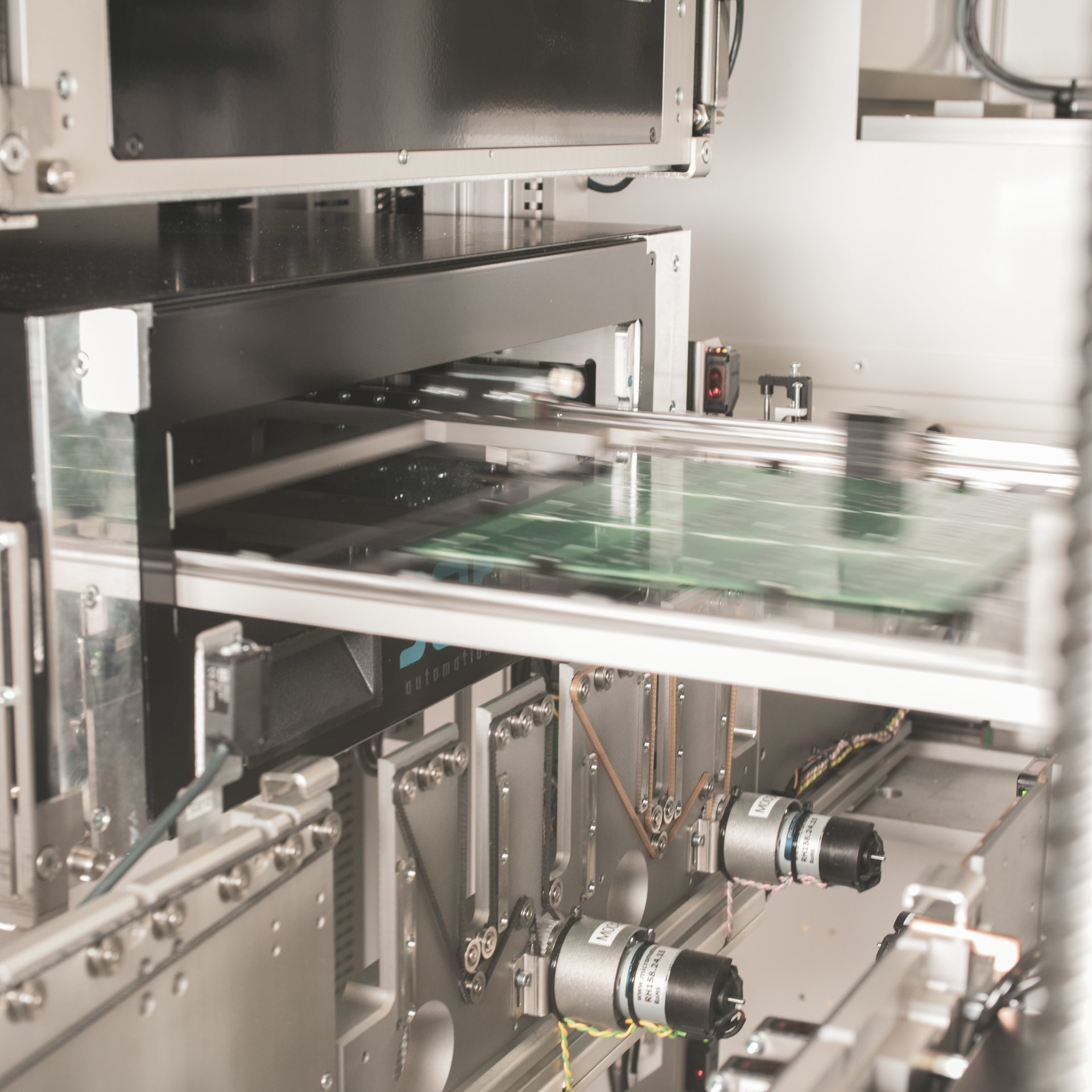

jot-automation_products_m5-highlights_1

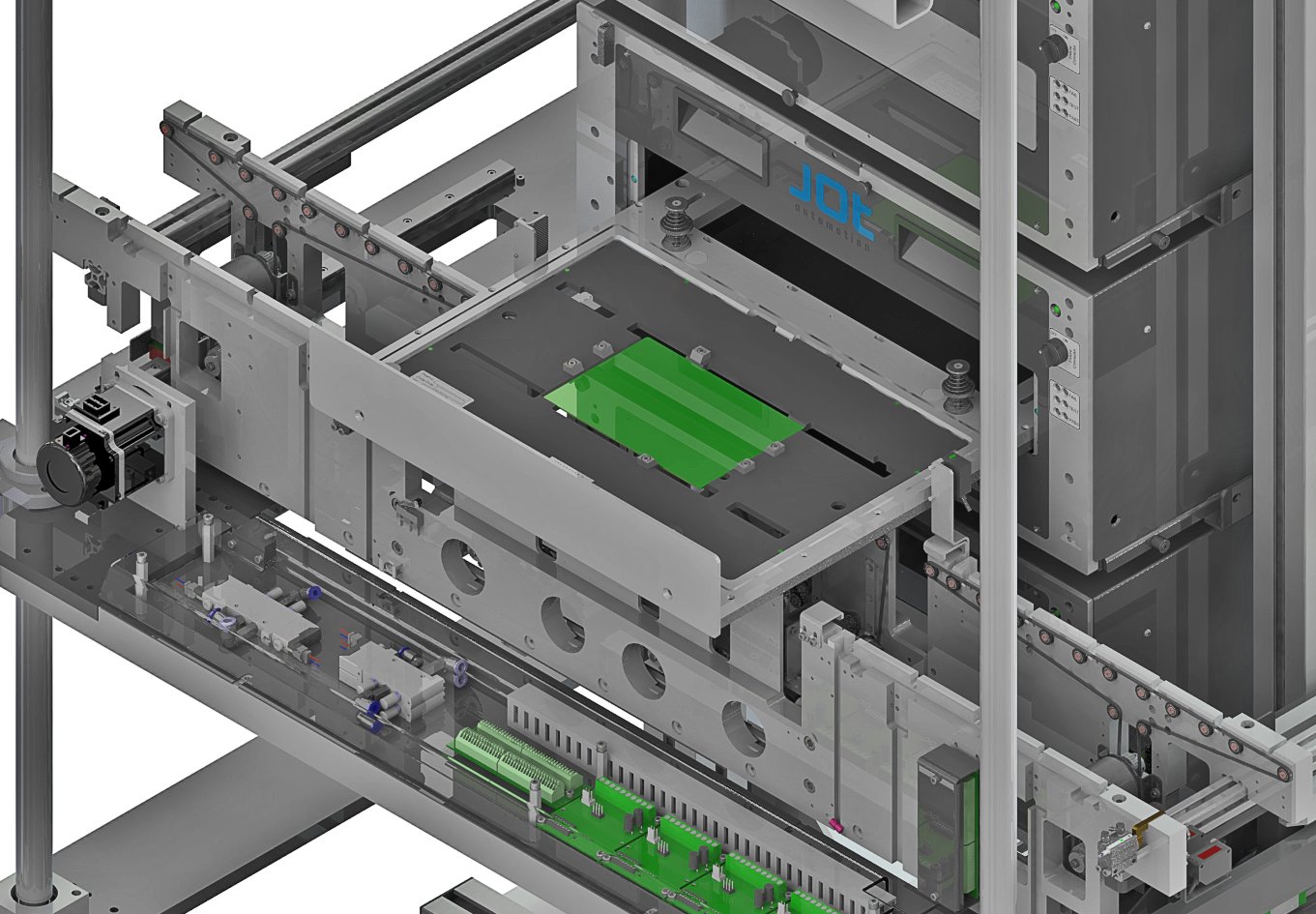

m5.tuote3
fail-1

Maximal testing capacity. Minimal footprint design. Major production line win.

Best of all, because it’s part of the modular M-TestSystem, the M5 is truly scalable. The M5 utilizes the same M-TestBoxes as the M1 Test Handler – making it yet another smart, flexible, and cost-effective choice for your ever-changing, and growing, testing needs.

Best advantage is achieved when application is fully integrated inside the test box, e.g. flash application. Test system is then fully independent and exchangeable between automated handling system and manual workstations.

M5 Test Handler Highlights
  • Simple, cost-effective way to automate PCB and pallet based testing
  • Safe, reliable product handling
  • Quick-adjust ease: no product-specific parts
  • Faster handling of smart products
  • Industry 4.0 autonomous interconnectivity
  • Truly scalable for growing test needs
  • Reusable, application-specific test boxes
Download product datasheet

KEY PRODUCT FEATURES:

  • M-TestBoxes compatible with M1 handler

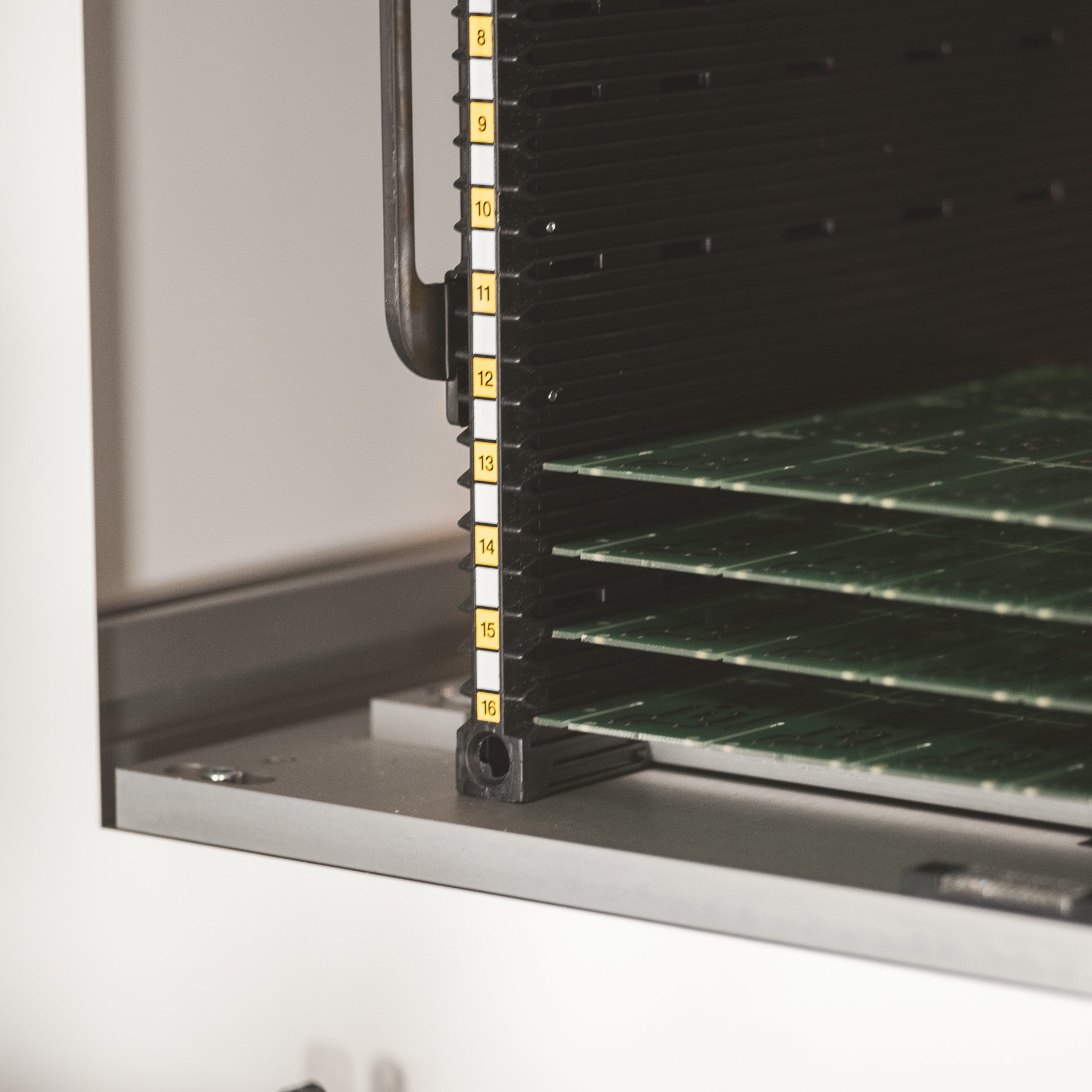

  • Boxes are fully independent, just pull out from M5 rack and use in off-line testing

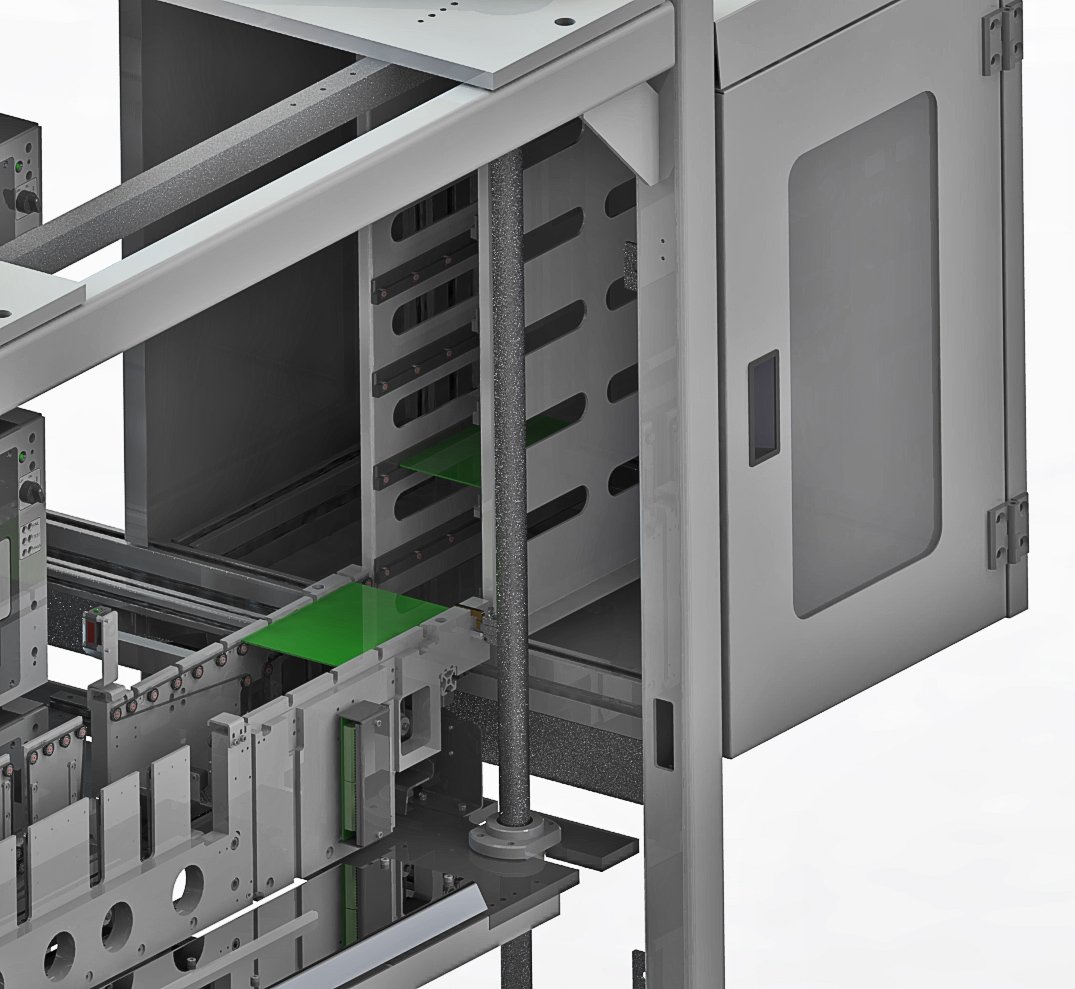

  • Fail product separation to integrated magazine
  • Spacious service-friendly construction
  • Ergonomic workspace

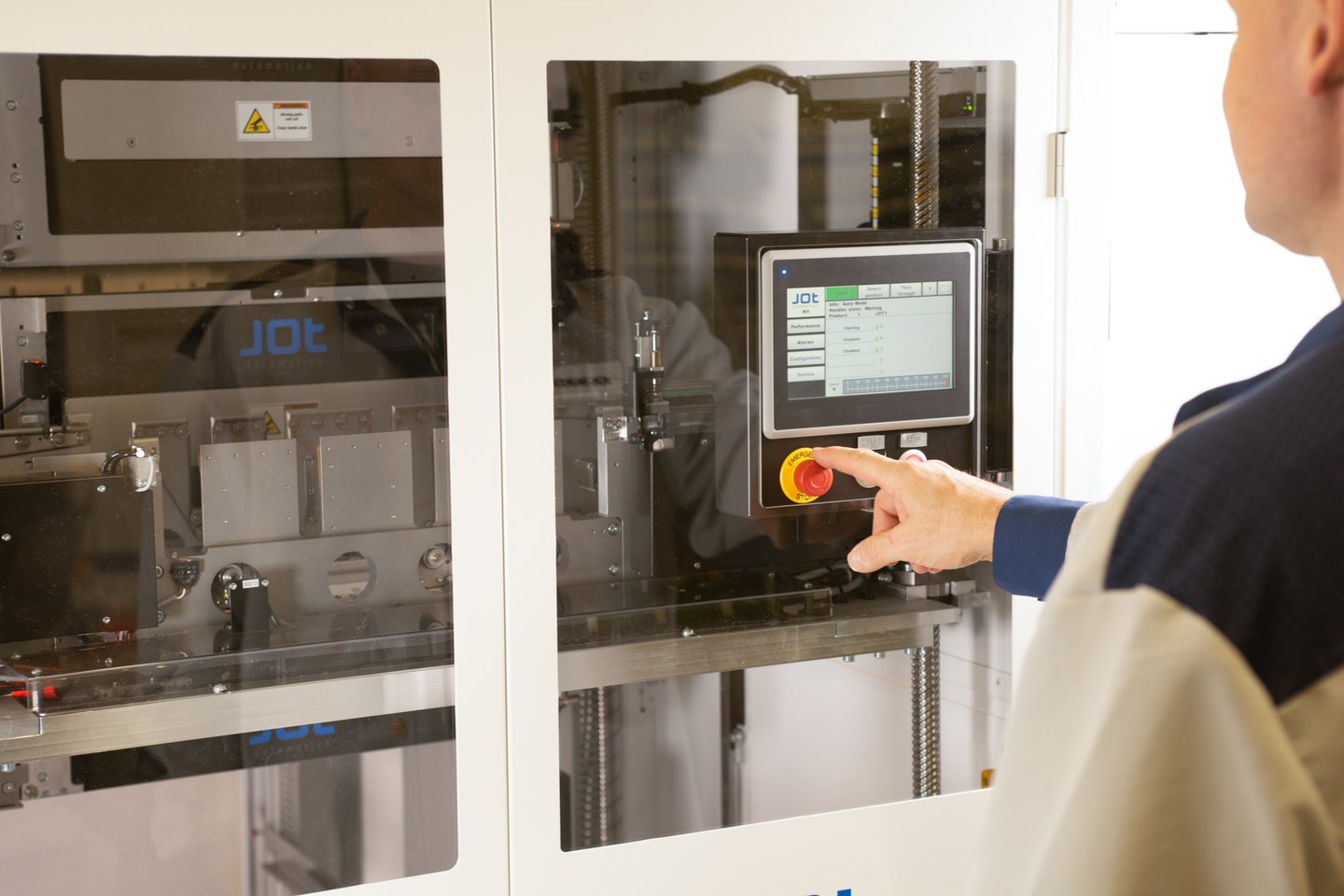

  • Touchscreen UI with base statistics and service capability
  • Easy start-stop operability
  • Automated width adjustment

STANDARD FEATURES:

  • Max test box amount 5 pcs
  • Max 2 test phases in one handler
  • Automatic width adjustment
  • Pass-through mode
  • Max 50 saved product configurations
  • IPC SMEMA 9851
  • Basic statistics on UI
  • Three user levels
  • Serviceability supporting UI

OPTIONAL FEATURES:

  • Fail buffer
    » Integrated at the handler outfeed side
    » Including 2 pcs of CAB Testset 300
  • Bypass conveyor when more than one M5 in line doing same test phase
  • Return conveyor for empty carriers
  • DUT identification
    » Readiness for code reader integration

DOWNLOAD PRODUCT DATASHEET

Learn more about the JOT M5 Test Handler that makes automated test handling easy. Click to download the datasheet for more detailed product specifications.

M - STANDS FOR MODULARITY

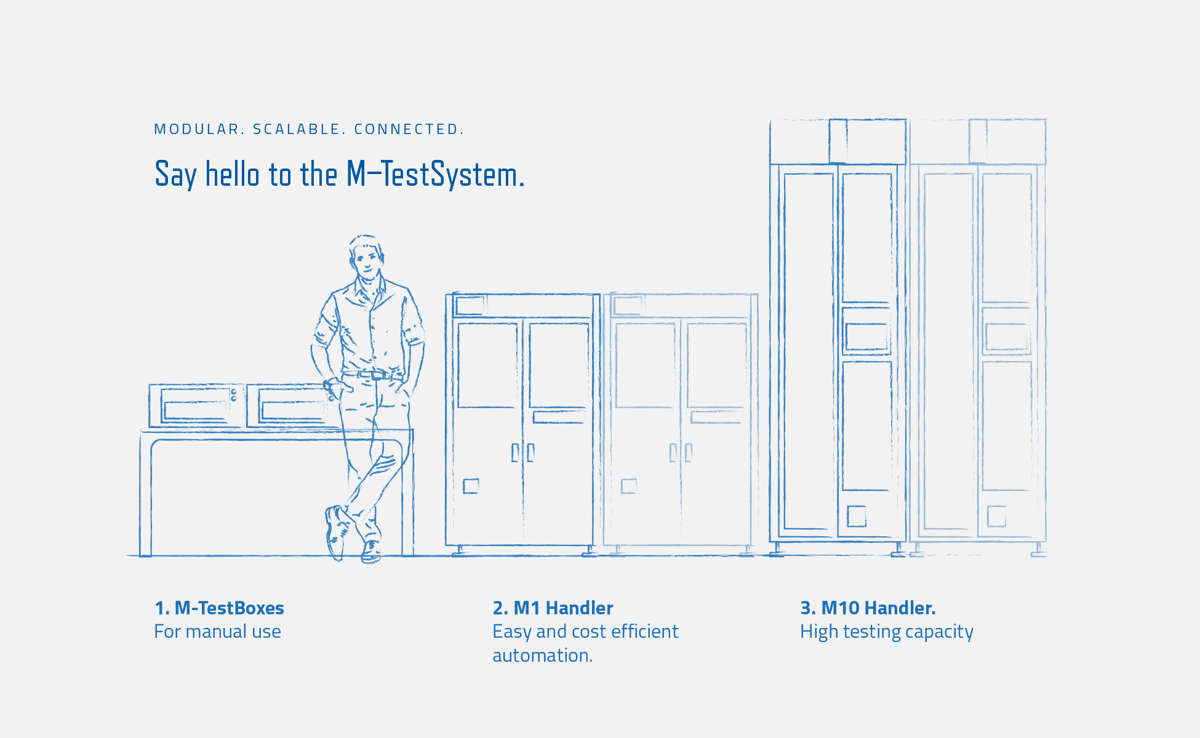

The core idea of the innovative M-TestSystem is to provide a testing solution that is easily adaptable to a variety of production requirements. Product handling is an important part of the M-TestSystem and it’s specifically designed for system scalability. And because all application-specific features are housed inside each easily tailored M-TestBox, the nature of the test process may be adapted dramatically – simply by changing the box.

"The patented conveyor solution ensures fast and reliable product handling."
— Mika Puttonen,  Solution Manager

GET A QUOTE
