CUSTOMIZABLE, APPLICATION-SPECIFIC TEST PLATFORM WITH FULLY EMBEDDED INSTRUMENTATION

Whether you are testing prototype PCBs, introducing a new product test offline, or running a small-scale production, the M Test Box is the most affordable and customizable PCB test platform.

The M Test box can host various test applications, is completely customizable and replaceable when it comes to instrumentation, and boasts a minimal footprint for any test environment.

The M Test Box is a plug-and-play-ready solution, scalable from offline use to inline test handling in a heartbeat. Transform your PCB testing with the highly customizable, reusable, and cost-efficient test platform. You can run a variety of product form factors with the platform.

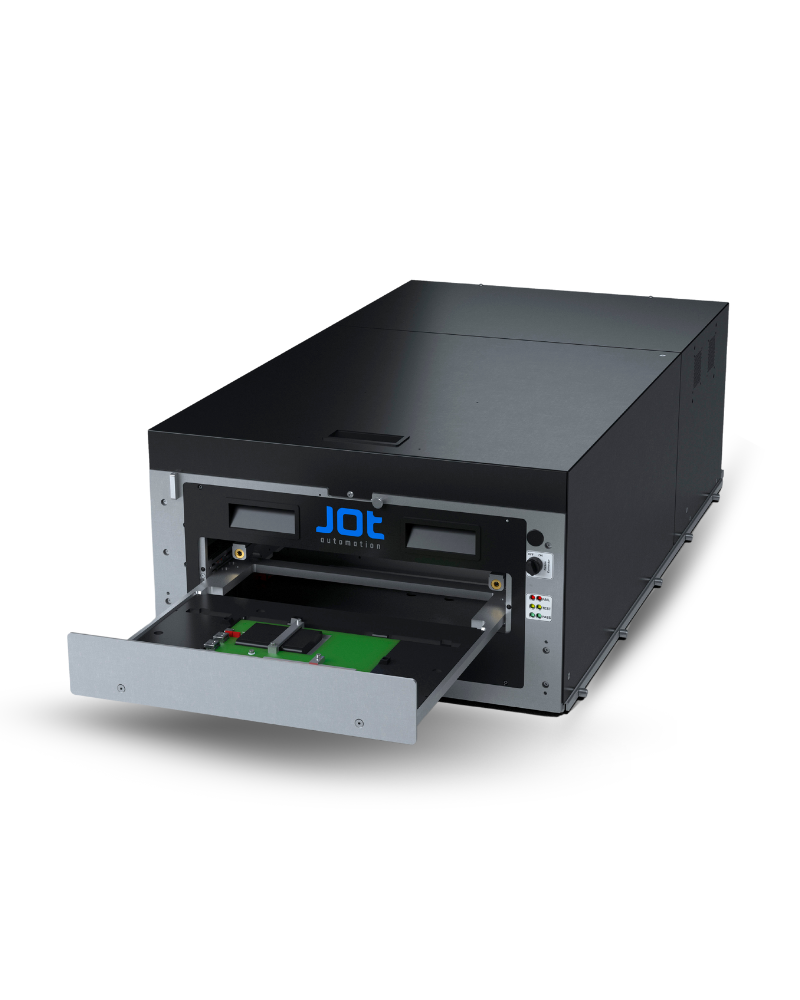

Automated stand-alone test station for pcbs

The beauty of the M Test Box is that you can run it virtually anywhere in your production: testing on panel level prior to depaneling, module level testing when products are typically on a pallet, or at final product testing phase.

minimal footprint, maximal flexibility

Perfect solution for tabletop, prototype and new product testing.

Customizable, embedded instrumentation

Customizable and replaceable instrumentation for multiple test purposes.

Scalability for all production environments

Unparalleled scalability, from off-line use to in-line test handling in an instant.

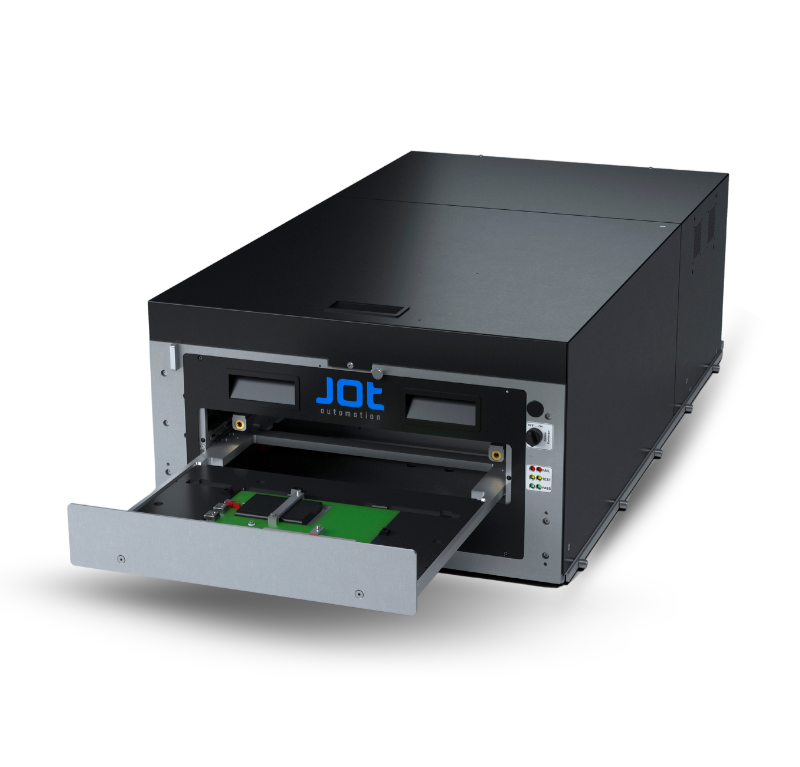

PRE_M10-1315_open_2

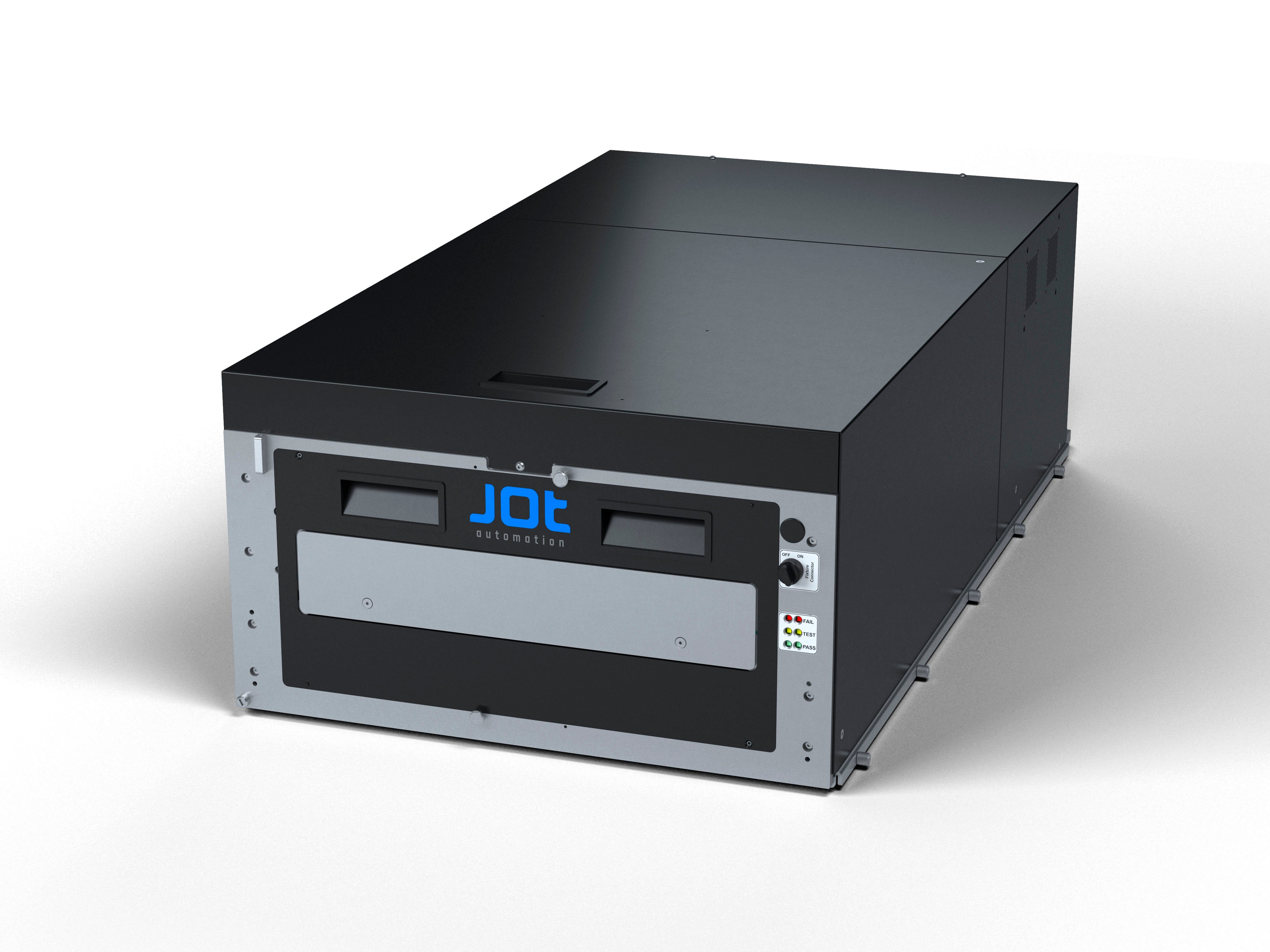

PRE_M10-1315_closed_2
m5-highlight-3
jot-automation_products_m5-highlights_1

CUSTOMIZATION FOR MULTIPLE PRODUCT SUPPORT

The M Test Box is a standard automated platform, manufactured to ensure the highest standards for test environments. The base platform is customized with an application-specific part, ensuring cost-efficiency and a long lifetime for your testing needs. With fully embedded instrumentation and high reusability, the platform offers unparalleled flexibility for testing.

The application-specific platform is customized to support multiple products simultaneously with less than a 2 minute fixture change-over, without the need to remove test box from automated test handler.

M Test Box highlights
  • Standard automated box platform ensures high quality
  • Embedded box control with easy http communication
  • Drawer for product change – easy to automate or use manually
    » less troubleshooting in ramp up phase

  • Careful design of application-specific customization ensures a long lifetime for the platform
    » project-specific cost becomes a long-standing investment

  • Automated stand-alone test station is the core of the M test platform
  • Fully embedded instrumentation for the most flexible and cost- efficient solution
    » careful customization guarantees high reusability for the future
Download product datasheet

M TEST BOX FEATURES:

  • M Test Boxes are compatible as standalone or inline with any M Test Handler
  • Boxes are fully independent for off-line testing
  • Up to 1800N contacting force with top to bottom or bottom to up press mechanics
  • Up to 340 x 340 mm DUT size
  • Up to 50 mm top side component height
  • More than 10 test box variants available
  • Ethernet communication interface
  • Easy-to-use web UI
  • Fully customizable by nature, the M Test Boxes can be tailored specifically to your needs

FUNCTIONAL TESTING

  • Electrical measurement
  • LED test
  • Button test

Programming

Radio frequency (RF) Testing

  • RF (radio frequency) tuning and validation

DOWNLOAD PRODUCT DATASHEET

Learn more about the JOT M Test Boxes and how you can improve your PCB testing with them. Click to download the datasheet for more detailed product specifications.

M - STANDS FOR MODULARITY

The core idea of the innovative M Test System is to provide a testing solution that is easily adaptable to a variety of production requirements. Product handling is an important part of the M-TestSystem and it’s specifically designed for system scalability. And because all application-specific features are housed inside each easily tailored M Test Box, the nature of the test process may be adapted dramatically – simply by changing the box.

Entirely usable on their own in a stand-alone configuration or integrated into one of our test handlers, like the M5 Test Handler or the M12 Test Handler, the M Test Box is the perfect test station for automated and semi-automated PCB(A) testing.
