Material handling

470 series

Materials in the right place in the right way and at the right time, just on time. That’s effective manufacturing.

Download datasheet Request for a quote


←  Standard products  /  Material handling  /  470 series

WORLD-CLASS MANUFACTURING SOLUTIONS THAT KEEP PRODUCTION LINES MOVING.

The JOT board handling portfolio covers 100% of material handling needs in fast-paced mass manufacturing. Take as an example segmented conveyors with integrated inspection, transfer conveyors, turn units with the L, T, X function, shuttle gates, lift units, bare board unstackers, magazine buffers, FIFO buffers, line loaders and unloaders.

JOT board handling products are known for high quality; even our first board handling products from the early 90’s are still running production in many factories around the world. Our solutions are fully modular, enabling easy configurations to versatile line configurations. We have the capability to offer optimized solutions based on our world-class production process knowhow for maximum capacity, quality and flexibility. Just to make sure that the solution is a perfect match for your needs.

material-handling-line

KEY PRODUCT FEATURES:

  • Product lifetime +25 years
  • 100% modularity enables easy configurations (line speed, width, and height)
  • The portfolio covers all of material handling needs
  • Capability to offer always 100% optimized solutions based on world-class production process know-how

STANDARD FEATURES:

  • Width series 470
  • PCB Length: 100–457 mm (4–18")
  • PCB Width: 50–457 mm (2–18.5")
  • PCB Weight: max. 2kg (4.4lbs)
  • PCB max. component upper height: 100 mm (4")
  • PCB max. component lower height: 25 mm (1.0")
  • Conveyor speed adjustable 6 – 18m/min (configurable double speed in infeed or outfeed)
  • PCB conveyor track width adjustment by hand wheel
  • Conveyor track height 950mm (+/- 25mm)
  • Conveyor fixed edge in front
  • SMEMA electrical interface
  • ESD-safe design
  • CE-safety compliant

OPTIONAL FEATURES:

  • Transport direction right to left
  • Motorized or line width adjustment
  • Other than SMEMA interface if requested
New
MAZ-1564-web

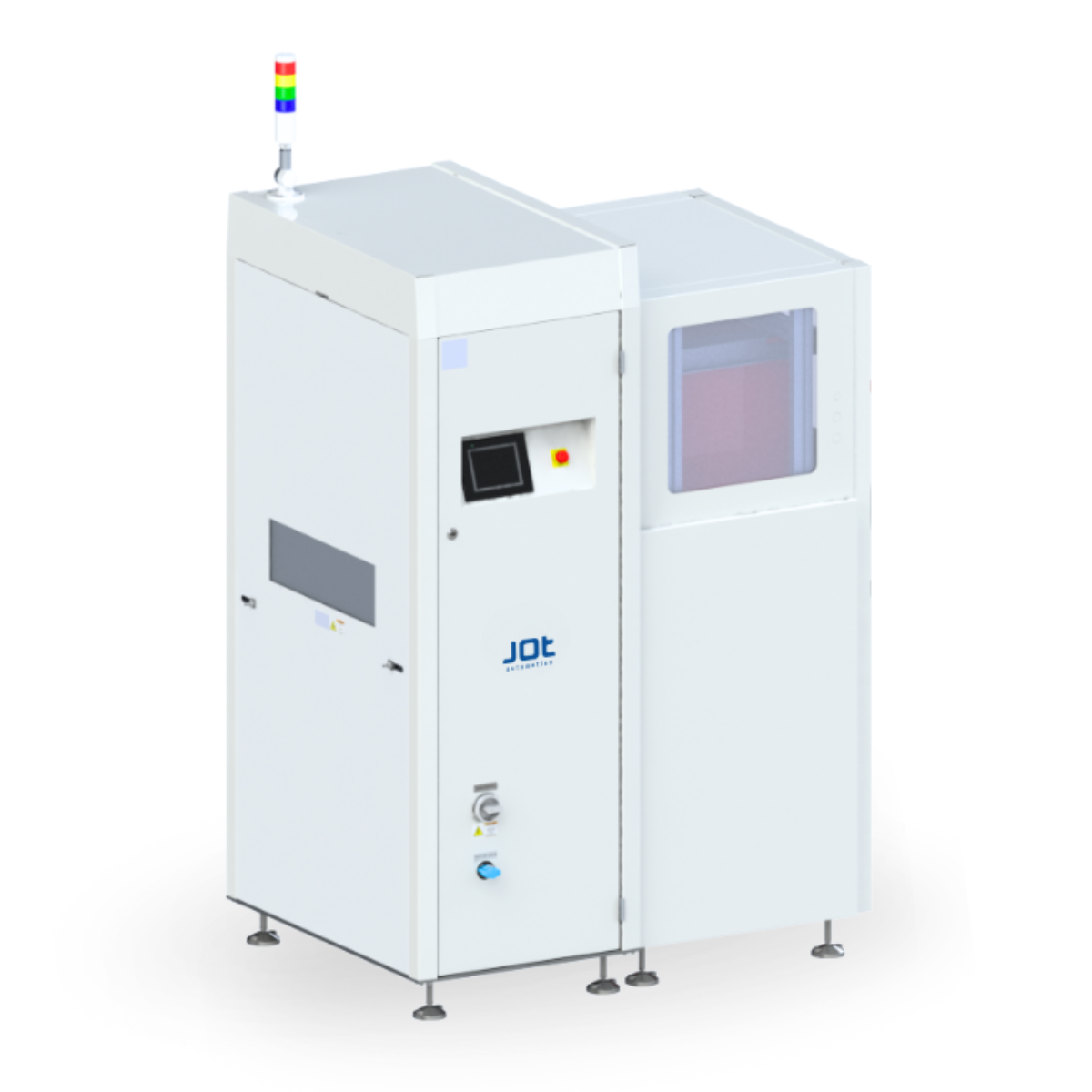

Magazine Handler

MAZ-1564-web

Download OK-Fail Magazine Handler product datasheet

  • Automatic product unloading and sorting
  • Upper magazine: Fail PCBs
  • Lower magazine: OK PCBs
  • Easy mechanical connection to other equipment
  • Safe, clean design with no visible motors or wiring
New
LIF-3621-web-1

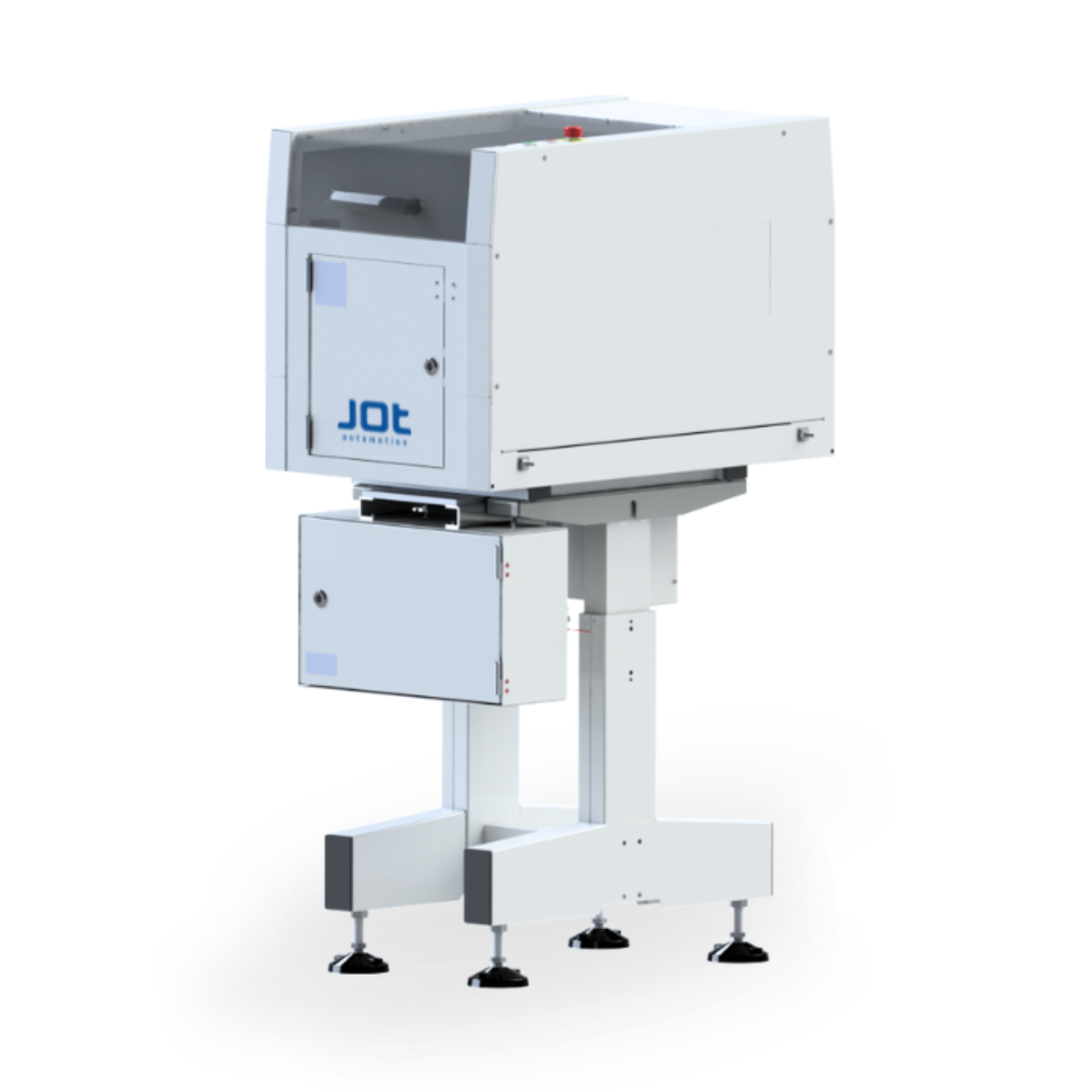

Lift Unit Short Stroke

LIF-3621-web-1

Download Lift Unit Short Stroke product datasheet

  • Designed for transporting PCBs
    between upper and lower track in a production line
  • Soft stops
  • Easy mechanical connection to other equipment
  • Safe, clean design with no visible motors or wiring
New
LIF-3229-web-2

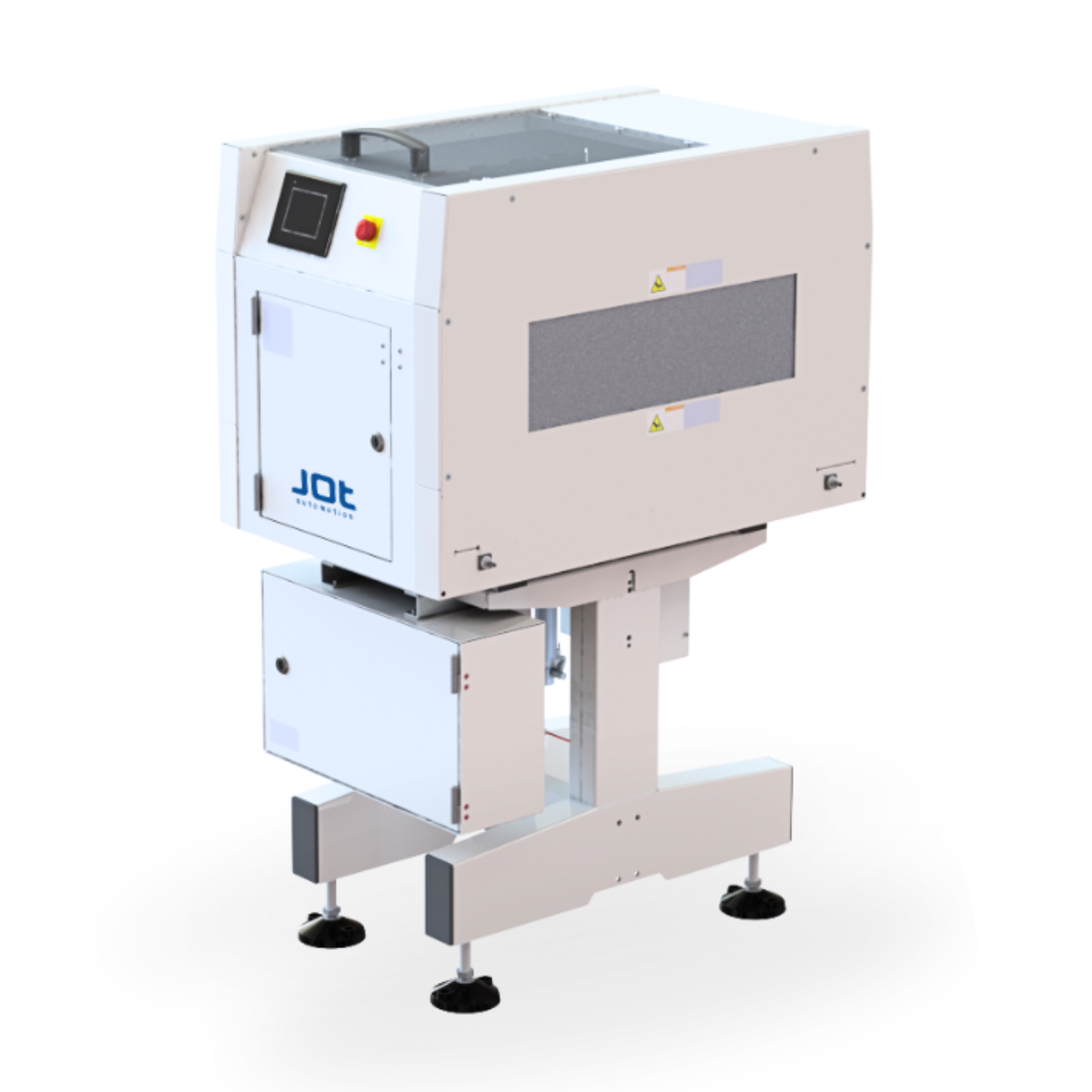

Lift Unit Short Stroke, Conveyor Tilt

LIF-3229-web

Download Lift Unit Short Stroke product datasheet

  • Designed for transporting PCBs
    into and out of the oven if the conveyor is angled
  • Easy mechanical connection to other equipment
  • Safe, clean design with no visible motors or wiring
segmented-conveyor

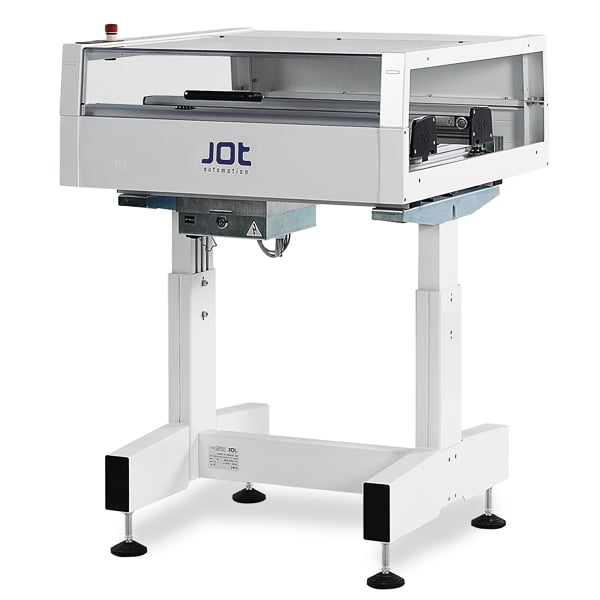

Segmented Conveyor

segmented-conveyor

Download Segmented conveyor -product datasheet

  • Transports and buffers PCBs between process machines
  • Easy mechanical connection to other equipment
  • Safe, clean design with no visible motors or wiring
  • Multiple-drive technology
transfer-conveyr

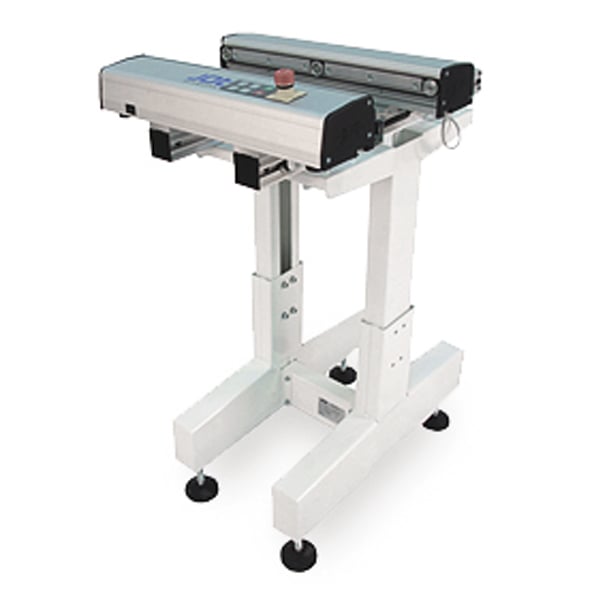

Transfer Conveyor

transfer-conveyr

Download Transfer Conveyor product datasheet

  • Transports and buffers PCBs between process machines
  • Sturdy structure offers reliable operation in demanding production conditions
  • Safe, clean design with no visible motors or wiring
shuttle-gate-conveyor

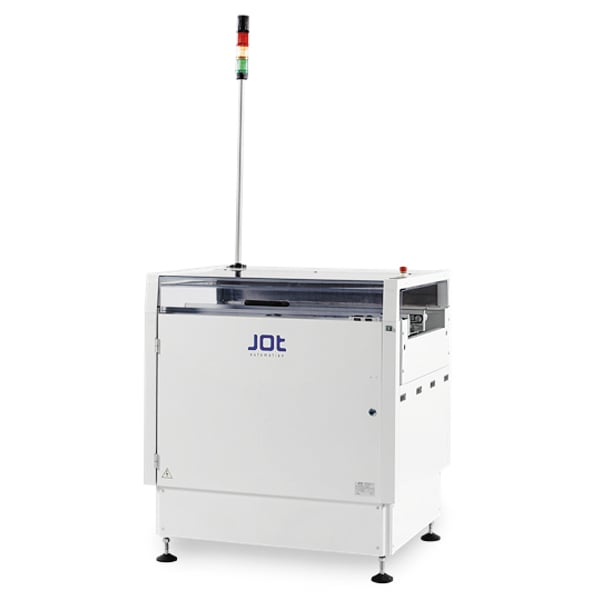

Shuttle Gate

shuttle-gate-conveyor

Download Shuttle Gate product datasheet

  • Allows personnel traffic through long production lines
  • Functions as a conveyor
  • Fully automatic hands-free operation
  • Can be used to compensate changes in line length
inline-ws

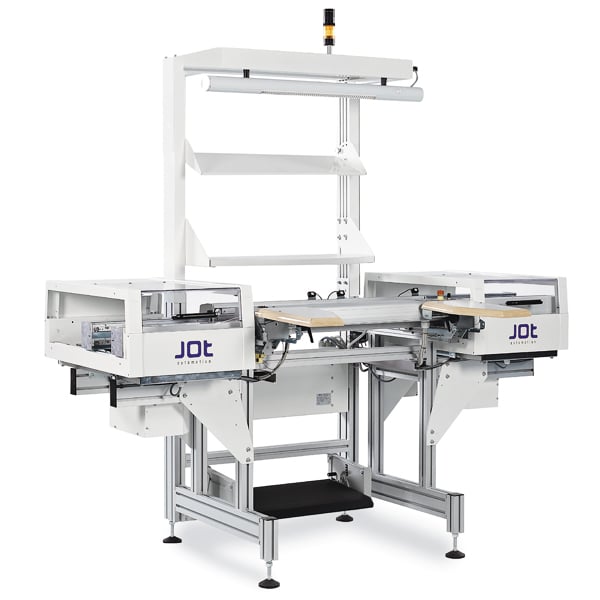

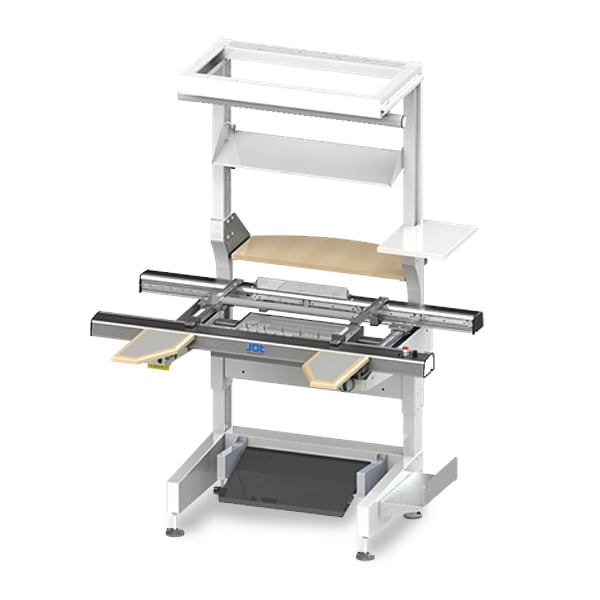

In-Line Workstation

inline-ws

Download In-Line Workstation product datasheet

  • Versatile adjustments
  • Large range of optional accessories
  • Buffer-work-buffer configuration
  • Fully integrated with conveyor track
aoi-workstation

AOI Workstation

in-line-workstation

Download AOI Workstation product datasheet

  • For separating failed products after Vision check or testing
  • Two level conveyor structure with integrated board lift modules
  • Buffer capacity for two  failed, one repaired and  four passed products
  • In line workplace for repairing
  • Large range of optional features
turn-unit

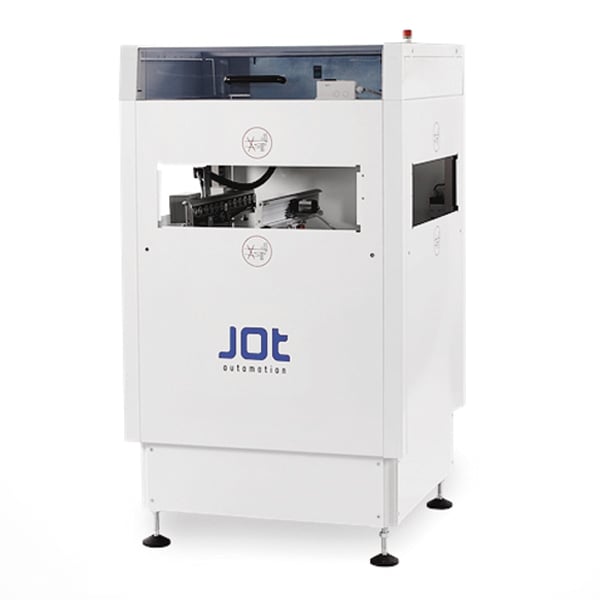

Turn Unit

turn-unit

Download Turn Unit product datasheet

  • Combines or separates material flows in a production line
  • L, T, and X -operation
  • Adjustable turn speed makes the unit suitable for sensitive products
shuttle-unit

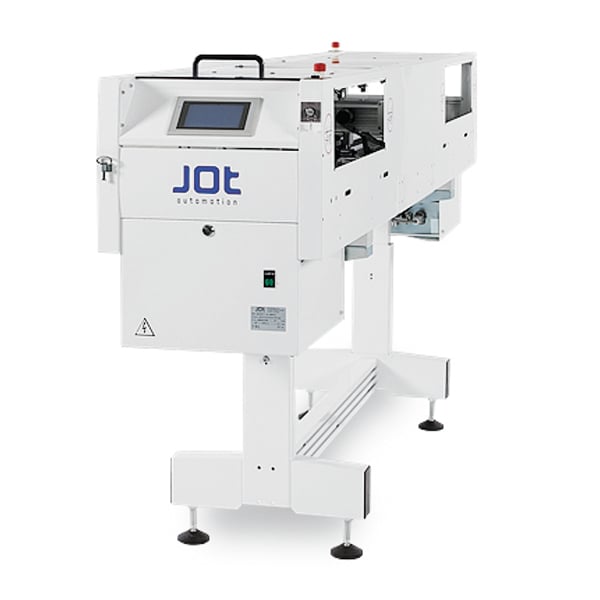

Shuttle unit

shuttle-unit

Download Shuttle unit product datasheet

  • Number and location of connected conveyors is freely programmable
  • Quick, motorized lateral movement
  • Programmable speed adjustment of the lateral movement
board-inverter

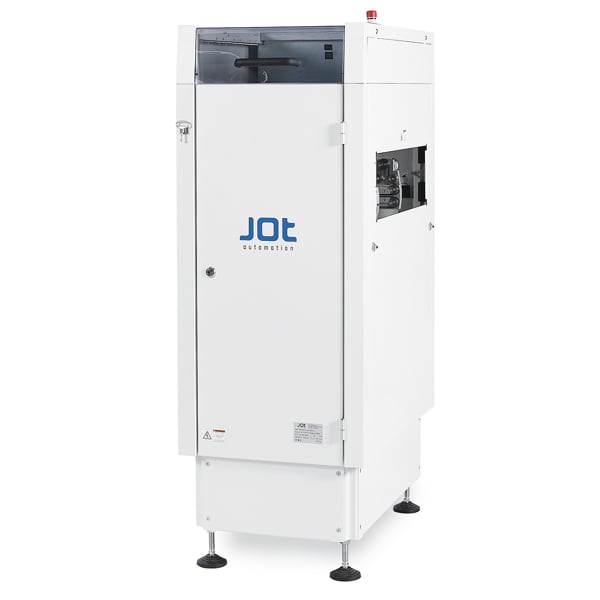

Board Inverter

board-inverter

Download Board Inverter product datasheet

  • Turns PCBs for top and bottom side processing
  • Handles boards with tall components
  • Motorized turn movement
unstacker

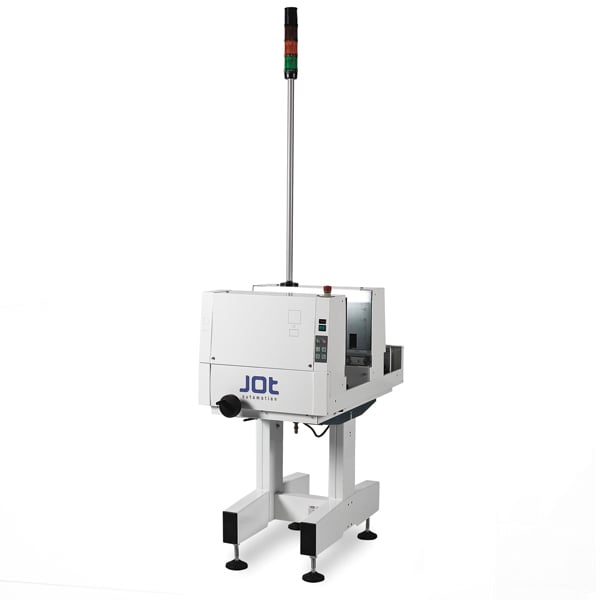

Unstacker

unstacker

Download Unstacker product datasheet

  • Automatically feeds boards from a stack onto a production line
  • Uninterrupted loading on fly
  • Non-vacuum design
  • Pass through function
magazine-unloader-line-loader

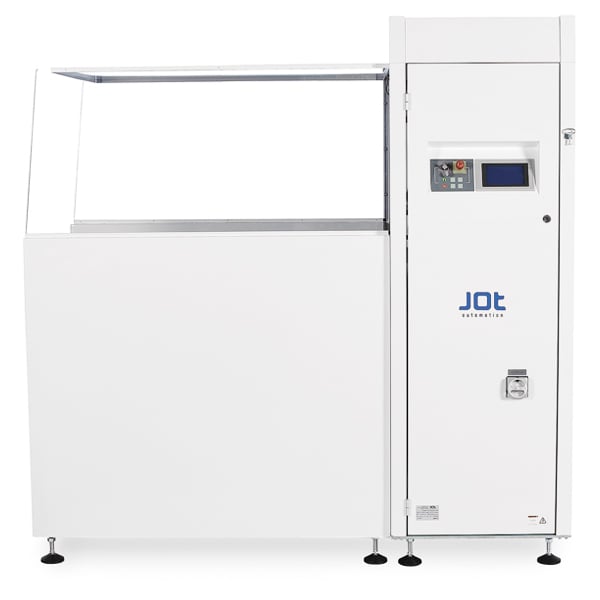

Magazine Unloader

magazine-unloader-line-loader

Download Magazine Unloader product datasheet

  • Unloads boards from a magazine to production line
  • Touch screen user interface
  • Completely enclosed design
  • Easy configuration for different magazine types
magazine-loader-line-unloader

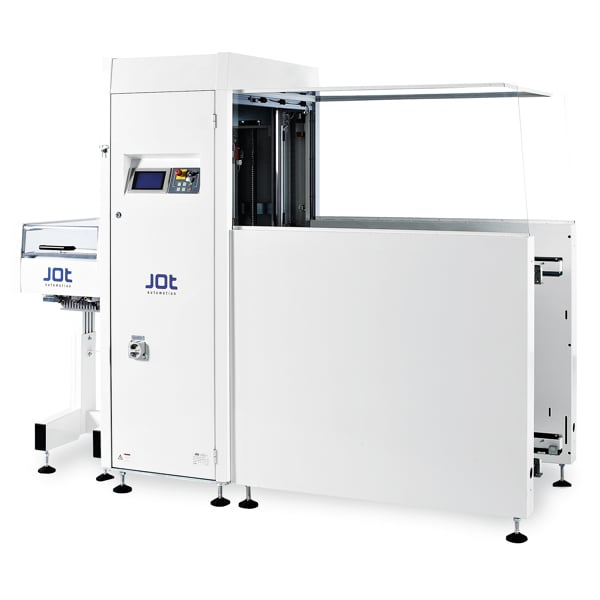

Magazine Loader

magazine-loader-line-unloader

Download Magazine Loader product datasheet

  • Loads boards from production line into magazines
  • Touch screen user interface
  • Completely enclosed design
  • Easy configuration for different magazine types
mag-buffer

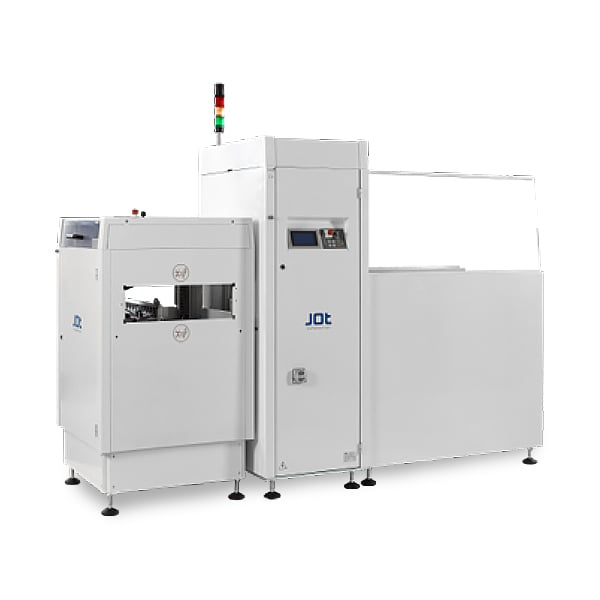

Magazine Buffer

mag-buffer

Download Magazine Buffer product datasheet

  • Can function as a loader, unloader or  as a buffer in the middle of a line
  • Touch screen user interface
  • Easy configuration to different magazine types
single-magazine-handler

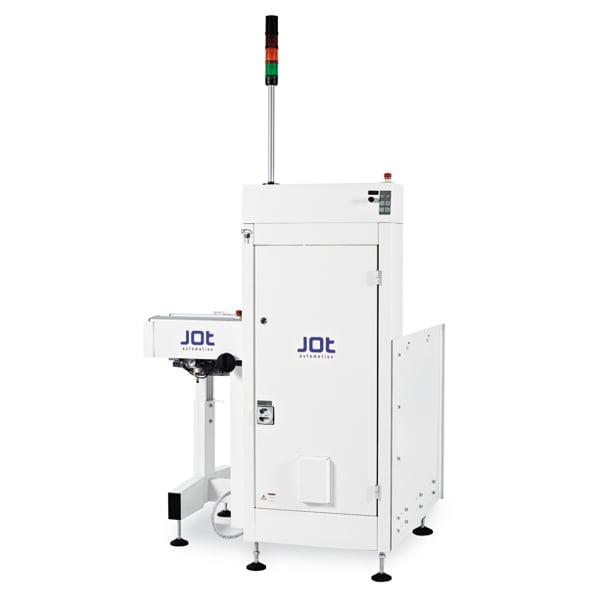

Single Magazine Handler

single-magazine-handler

Download Single Magazine Handler product datasheet

  • Single Magazine Handler for line loading/unloading
  • Manual magazine change and locking with clamps
  • Ideal for high mix, low volume manufacturing
fifo-buffer

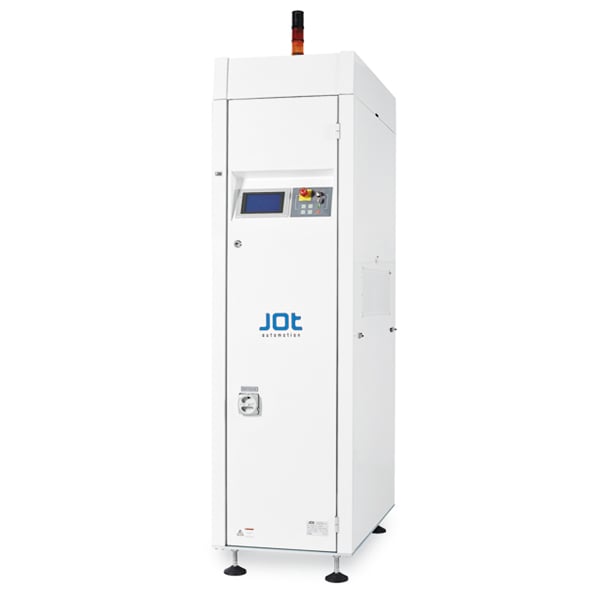

FIFO Buffer

fifo-buffer

Download FIFO Buffer product datasheet

  • Increases production line throughput by balancing material flow
  • Flexibility between automatic and manual work phases
  • Selectable FIFO and LIFO operation
  • Cycle time less than 10 seconds
  • Small footprint
  • Configurable cooling time
